BOSS GT-100 Amp Effects Processor

With the new GT-100 Version 2.0 update, BOSS’ high-end multi-effects processor is now even more powerful than before, adding a host of great new features to its already formidable arsenal. Two new amp types are included, along with cutting-edge MDP effects, an acoustic guitar simulator, and an improved rotary effect. A convenient Guitar-to-MIDI function is on board as well, letting you connect to a computer to play soft synths and input MIDI note using your normal guitar. The GT-100’s USB audio capabilities have been expanded too, providing greater flexibility for re-amping applications. And with the BOSS TONE STUDIO software, you can now edit GT-100 patches from a friendly graphical interface on your computer.

For optimal performance, stay up to date with the current GT-100 system software and BOSS Tone Studio

Download “BOSS TONE STUDIO for GT” for Windows/macOS

• Advanced COSM amps that model vintage classics and deliver highly expressive tones
• Dual LCDs and panel knobs offer simple and intuitive operation, with direct access to every parameter
• EZ Tone feature with graphical Tone Grid for constructing new patches, plus Amp Customize and OD/DS Customize functions for easily creating original sounds
• Unique Accel pedal provides simultaneous control of multiple parameters
• Powerful A/B Channel Divider for creating dual amp and effects chains that can be blended together or toggled by footswitch, frequency, or picking strength
• Download and share Livesets at BOSS Tone Exchange

  GT-100 Version 2.0—Newly Added Features
• Two new amp models: BGNR UB Metal and ORNG Rock Reverb
• New MDP effects powered by innovative BOSS technology: Tera Echo, Overtone, and A-DIST
• Rotary 2 and Acoustic Guitar Simulator effects types added
• Monophonic guitar-to-MIDI conversion from normal 1/4-inch guitar input
• Enhanced USB audio/MIDI interface with multi-channel operation for flexible recording and efficient re-amping
• Support for BOSS TONE STUDIO editor/librarian for Mac/Windows and new GT-100 Version 2.0 patches, available for free at bosstonecentral.com

Advanced COSM Amps: Beyond Vintage

With its next-generation COSM processor, the GT-100 ushers in a new era of expression and sonic capabilities. Recreating the meticulous details of vintage amps and how they behave, the GT-100 excels in not only cloning classic amps, but in creating a new world of unimagined tones as well. The Amp Customize function lets you mutate classic amps beyond reality to construct completely new, unimagined sounds!

Simple and Intuitive User Interface

The GT-100’s unique dual-LCD and eight-knob user interface provides fast access and intuitive control. There are no menus to navigate; every function is instantly available. The tone-customizing functionality has been improved as well—all patches, amps, and overdrives/distortions can be created from scratch and/or customized with the friendly graphical Tone Grid.

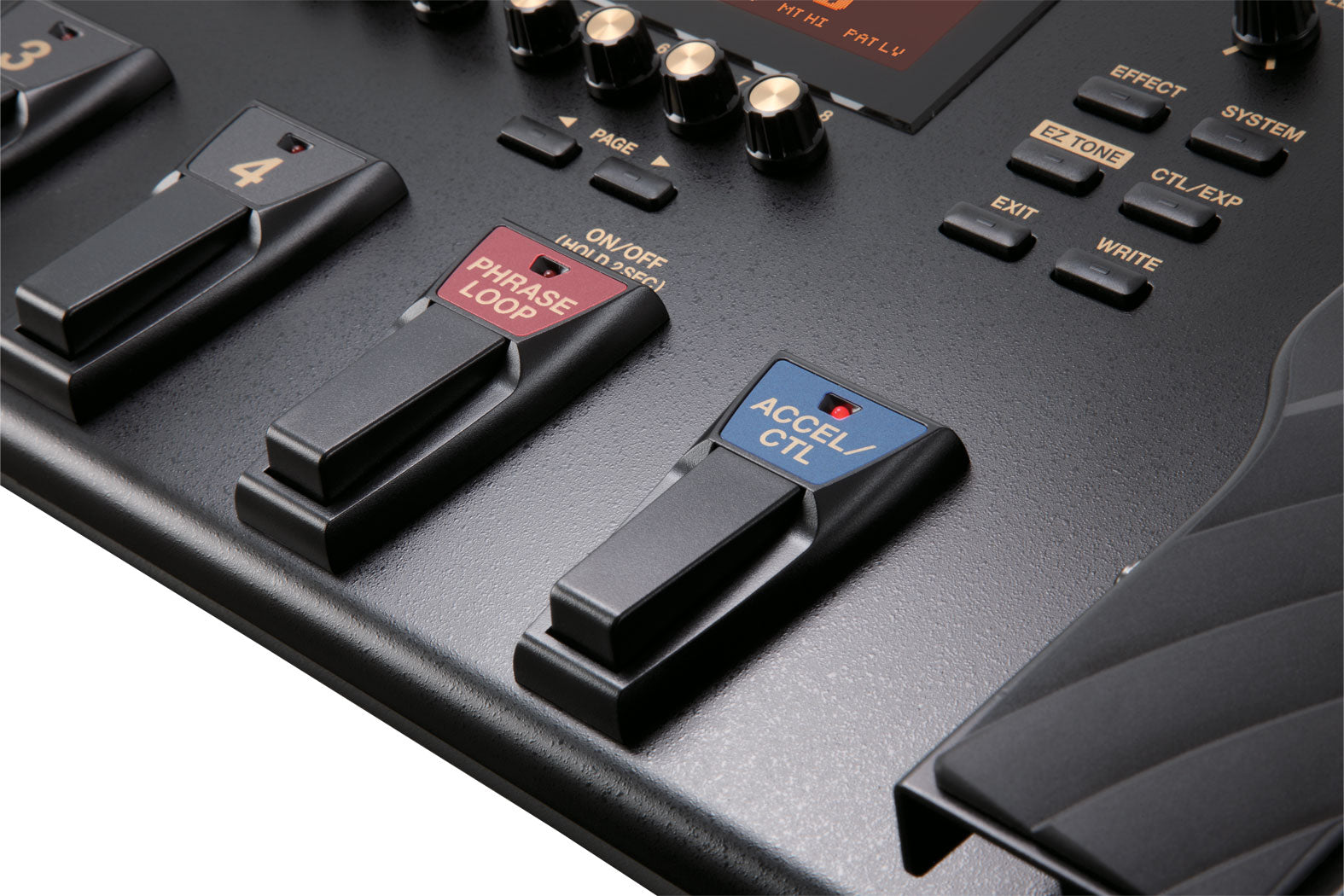

New Tonal Possibilities with the Accel Pedal

A new dimension of expression is available with the Accel pedal, which enables control of multiple parameters simultaneously, as well as time-variant effects such as Feedbacker, S-Bend, Twist, and more. Experiment with creative combinations of parameters and bring dynamic new sounds to your performances by interacting in real time with this cool pedal.

A/B Channel Divider Function

Another notable feature in the GT-100 is the versatile A/B Channel Divider. This lets you assign different amps and effects to each channel, either for blending together or switching between them with a footswitch. Going even further, you also have the ability to switch channels by playing strength or frequency range. With each channel capable of driving its own effects and amps settings, the range of tones gets wider and wilder! You can assign smooth, mild lead tones to the mid-to-high pitches, for example, and heavy, cutting tones to the lower notes—the tonal possibilities are endless.

Edit and Organize Sounds with BOSS TONE STUDIO

Available as a free download for Mac or Windows, BOSS TONE STUDIO gives you an intuitive graphical interface for creating and editing GT-100* effects patches from your computer via USB. The software also makes it easy to organize and archive patches, and to load them as needed for different gigs and recording sessions. If your computer has Internet access, BOSS TONE STUDIO provides an integrated connection to the BOSS TONE CENTRAL website, where you can preview and download free gig-ready patches created by top guitar pros directly into the GT-100.

*GT-100 Version 2.0 software is required for compatibility with BOSS TONE STUDIO.

BOSS TONE CENTRAL: Your Web Home for Free Patches, Instructional Vids, Artist Tips, and More

BOSS TONE CENTRAL is the ultimate destination for all players that use BOSS products. Evolving to include a growing selection of BOSS gear, this newly launched site gives you access to lots of premium content, including demo videos and free patches created by famous guitarists, touring pros, and session players. Check back often for new patches, how-to videos, artist interviews, and much more. If you love BOSS effects, BOSS TONE CENTRAL is the place to be!

AD Conversion

24 bits + AF method

*AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.

DA Conversion

24 bits

Sampling Rate

44.1 kHz

Program Memories

400: 200 (User) + 200 (Preset)

Effect Type

COMP, PREAMP(*1), OD/DS(*2), EQ, FX1/FX2(*3), DELAY, CHORUS, REVERB, PEDAL FX, NS1/NS2, ACCEL FX

*1 PREAMP
NATURAL CLEAN, FULL RANGE, COMBO CRUNCH, STACK CRUNCH, HiGAIN STACK, POWER DRIVE, EXTREME LEAD, CORE METAL, JC-120, CLEAN TWIN, PRO CRUNCH, TWEED, DELUXE CRUNCH, VO DRIVE, VO LEAD, MATCH DRIVE, BG LEAD, BG DRIVE, MS1959 I, MS1959 I+II, R-FIER VINTAGE, R-FIER MODERN, T-AMP LEAD, SLDN, 5150 DRIVE, BGNR UB METAL*, ORNG ROCK REVERB*, CUSTOM

*2 OD/DS
MID BOOST, CLEAN BOOST, TREBLE BOOST, CRUNCH, NATURAL OD, WARM OD, FAT DS, LEAD DS, METAL DS, OCT FUZZ, A-DIST*, BLUES OD, OD-1, T-SCREAM, TURBO OD, DIST, RAT, GUV DS, DST+, METAL ZONE, '60S FUZZ, MUFF FACE, CUSTOM

*3 FX1/FX2
T.WAH, AUTO WAH, SUB WAH, ADV. COMP, LIMITER, SUB OD/DS, GRAPHIC EQ, PARA EQ, TONE MODIFY, GUITAR SIM., AC.GUITAR SIM*, SLOW GEAR, DEFRETTER, WAVE SYNTH, SITAR SIM., OCTAVE, PITCH SHIFTER, HARMONIST, OVERTONE*, SOUND HOLD, AC. PROCESSOR, PHASER, FLANGER, TREMOLO, ROTARY1, ROTARY2*, UNI-V, PAN, SLICER, VIBRATO, RING MOD., HUMANIZER, 2X2 CHORUS, SUB DELAY, TERA ECHO*

*Newly Added Features (Version 2.0)
A-DIST is available in OD/DS and in SUB OD/DS of FX2.
OVERTONE and TERA ECHO are only available in FX2.

Nominal Input Level

INPUT: -10 dBu
RETURN: -10 dBu
AUX IN: -20 dBu

Input Impedance

INPUT: 1 M ohm
RETURN: 100 k ohms
AUX IN: 47 k ohms

Nominal Output Level

OUTPUT: -10 dBu/+4 dBu
SEND: -10 dBu

Output Impedance

OUTPUT: 2 k ohms
SEND: 2 k ohms

Dynamic Range

100 dB or greater (IHF-A)

Displays

Graphic LCD (132 x 64 dots, backlit LCD) x 2

Connectors

INPUT jack (1/4-inch phone type)
AUX IN jack (Stereo miniature phone type)
OUTPUT L/MONO, R jacks (1/4-inch phone type)
PHONES jack (Stereo 1/4-inch phone type)
EXT LOOP jacks (SEND, RETURN; 1/4-inch phone type)
AMP CONTROL jack (1/4-inch phone type)
SUB CTL1, 2/SUB EXP jack (1/4-inch TRS phone type)
USB port
MIDI connectors (IN, OUT)
DC IN jack

Power Supply

DC 9 V

Current Draw

600 mA

Accessories

AC adaptor(PSB-1U + AC Cord Set)
USB Cap
Owner’s Manual

Options (sold separately)

Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500L/500H, EV-30, Roland EV-5
AC adaptor (PSB-1U)

*When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)

Size and Weight

Width

542 mm
21-3/8 inches

Depth

271 mm
10-11/16 inches

Height

80 mm
3-3/16 inches

Weight

4.8 kg
10 lbs. 10 oz.

Maximum height: 102 mm, 4-1/16 inches.

*0 dBu = 0.775 Vrms

*All specifications and appearances are subject to change.
