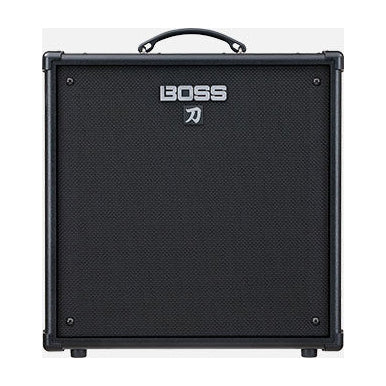

BOSS KATANA-110 BASS Katana 1 x 10 Watt 110 Watt Bass Guitar Amplifier

Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-110 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, backed by a stage-ready, 110-watt class AB power amp, custom 10-inch woofer, and tweeter with on/off switch. And with comprehensive EQ, flexible connectivity, and more, the Katana-110 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.

• Versatile combo bass amp with stage-ready sound and advanced features
• 110-watt class AB power amp delivers big, punchy tone
• Rock-solid combo cabinet with custom 10-inch woofer and high-frequency tweeter with on/off switch
• Three selectable amp voicings cover a wide range of styles
• Shape switch with three tone characters: mid scoop, bright, and extended range
• Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
• Comprehensive four-band EQ with selectable low and high-mid frequency controls
• Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
• Six memories for storing and recalling favorite sound setups
• Power Control realizes cranked-amp volume in any playing situation
• Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
• Download and share Livesets at BOSS Tone Exchange
• USB and phones/recording outputs with mic'd cabinet emulation
• Balanced XLR direct output with selectable direct, pre, or post signal
• External speaker jack
• Optional GA-FC footswitch for deep performance control
• Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor

Refined Tone and Authoritative Power

The Katana-110 Bass brings you high-performance amplification fueled by decades of BOSS knowledge and expertise. Armed with 110 watts of time-tested class AB power, this gig-ready amp provides big volume, punch, and presence and smooth, natural drive as you turn up the gain. Three unique preamp types are also available—each with a powerful three-way Shape switch to fine-tune the character—so you’ll always have the perfect sound for any style or genre.

Vintage—A classic tube voice with organic tone and natural drive.
Flat—Smooth, clear, and dynamic tone with rich harmonic character.
Modern—Quick dynamic response with extended bass range.

Command the Stage

With its custom-designed speaker system and rock-solid combo cabinet, the Katana-110 Bass produces a commanding voice to drive your band in any musical situation. The fundamental tone of the 10-inch woofer is complemented with a tweeter for high-frequency definition that’s ideal for slap and other modern playing styles. Our efficient bi-amp design delivers clear and balanced sound, and the tweeter can be turned off with a panel switch for a more traditional bass tone if desired.

Four Independent Effects Sections

The Katana series is famous for its onboard BOSS effects, and the Katana-110 Bass is no exception. Dedicated comp/limiter and drive sections provide core processing, while FX1 and FX2 offer a treasure trove of options from the BOSS bass effects library, from standards like chorus and flanger to octave, bass synth, and more. The FX2 section also includes delay and reverb, and over 60 total effect types are available for loading via the BOSS Tone Studio editor.

Precision Sound-Crafting Tools

With the intuitive panel controls on the Katana-110 Bass, you can quickly refine your tone in detail. The studio-inspired Blend section lets you mix in some dry signal, which you can pre-shape from the panel with three customizable settings for the optimum tonal fusion. A comprehensive four-band EQ is also on hand, complete with three selectable frequency centers in the low-mid and high-mid bands.

Rich Performance Versatility

The flexible Katana-110 Bass is your perfect partner for any live gig. Six Tone Setting memories are available for storing and recalling the sounds you create, including preamp type, EQ, Blend, and effect settings. You can switch memories from the panel and go even further with optional footswitches, an expression pedal, and the GA-FC Foot Controller. There’s also a balanced XLR output for connecting to a house PA, along with a switch to select between direct, pre, or post signals.

Recording and Practice Powerhouse

The Katana-110 Bass is equally suited for studio recording and home playing. The compact footprint takes up minimal space, and the variable Power Control lets you dial up cranked-amp tones at family-friendly volume levels. A headphones/recording jack provides a direct output with effects and mic’d cab emulation with three Air Feel settings, while USB lets you interface with computer production software and track with great tone.

Go Deeper with BOSS Tone Studio

To shape sounds with even finer control, reach deep into the heart of the Katana-110 Bass with the BOSS Tone Studio editor. Adjust preamp, EQ, and Blend settings, call up and tweak over 60 BOSS effects, and organize sounds in Live Sets for different gigs. You can also shape the overall amp response with powerful global EQs and fine-tune system settings like Air Feel, USB, and more. And by connecting an optional BOSS Bluetooth® Audio MIDI Dual Adaptor to the rear panel, you can wirelessly adjust settings on the gig from your iOS or Android mobile device.

Specifications

Output Power

60 W continuous (RMS)
110 W peak

Nominal Input Level

INPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)

Speaker

WOOFER: 25 cm (10 inches) x 1
TWEETER: x 1

Controls

POWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob

[BLEND]
BLEND button
DRY LEVEL knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob

[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button

[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT (POST, PRE, DIRECT)

Indicators

COMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL
TWEETER

Connectors

INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth? Audio MIDI Dual Adaptor
AC IN jack

Power Consumption

77 W

Accessories/

Owner's manual
Power cord
GA-FC sticker

Options (sold separately)

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
Bluetooth? Audio MIDI Dual Adaptor (Model BT-DUAL)

Size and Weight

Width

470 mm
18-9/16 inches

Depth

300 mm
11-13/16 inches

Height

500 mm
19-11/16 inches

Weight

16.8 kg
37 lbs 0.6 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
