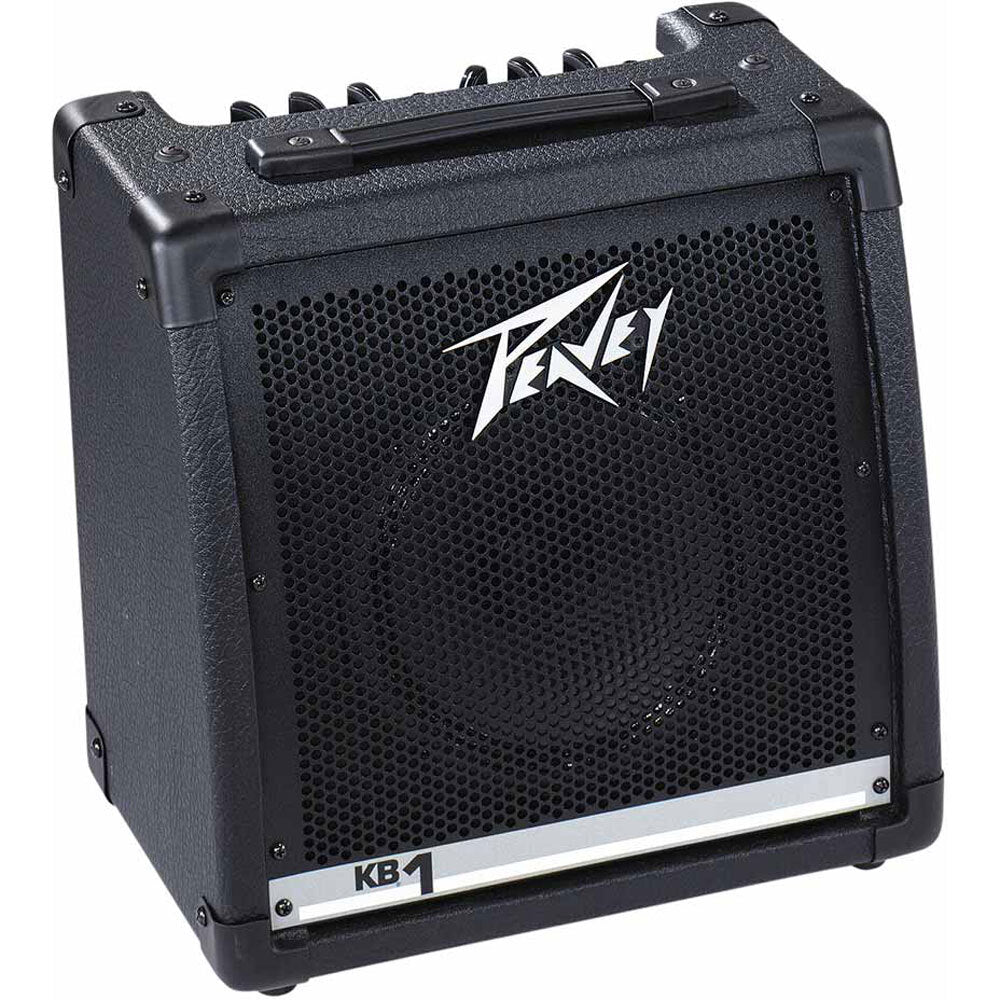

Peavey KB Series "KB1" Keyboard Amplifier 20-Watt 1x8"

The Peavey KB1 is perfect for practice, pre-gig warm-ups, songwriting or any application where quality sound is important, but a large, bulky unit is just too much.

The design of the KB1 makes it a compact workhorse amplifier for keyboardists, acoustic guitar players and other musicians needing full-range output in a small package. At 20 Watts RMS, the KB1’s heavy-duty 8" speaker gets the job done! And for situations that require headphones, the KB 1 delivers.

Two channels are provided, featuring 1/4" inputs, level controls, and two-band active equalization (Low, High). The front panel headphone jack automatically disables the internal speaker when connected. Special attention was given to make the KB1 as compact and light as possible to maximize portability, yet provide a "big" sound. Go ahead...pick it up! At 17.4 lbs., it’s perfect for "on-the-go" projects. And the size? Well, let’s say it’ll fit just about anywhere.

Like all of the KB Series, the KB 1 is built for the road. First, extremely tough black covering is provided along with heavy-duty corners. Second, a serious handle is available at the top of the unit. Third, a heavy-duty metal grille is provided to protect the speaker.

FEATURES:

• 8 inch extended range speaker
• Two separate channels
• 2-band EQ per channel
• Headphone out
• 20 watts of clean Peavey power
• Weight Unpacked: 16 lb (7.26 kg)
• Weight Packed: 21 lb (9.53 kg)
• Width Packed: 18" (45.72 cm)
• Height Packed: 19.5" (49.53 cm)
• Depth Packed: 13.12" (33.32 cm)

SPECIFICATIONS:

• Rated power and load: 20 W RMS into 4 Ohms
• Power @ clipping (typical): (5% THD, 1 kHz, 120 VAC line) 20 W RMS into 4 Ohms
• Total harmonic distortion: Less than 0.5%, 100 mW to 12 W RMS, 60 Hz to 10 kHz, 4 Ohms (typically below 0.2%)
• Power consumption: 50 Watts, 50/60 Hz, 120 VAC
• PREAMP SECTION:
  The following specs are measured @ 1 kHz with the master EQ flat @ 0 dB. Nominal values are with levels @ 5 Minimum values are with levels @ 10
• INSTRUMENT INPUTS:
  Input impedance: 220 K Ohms
  Nominal input level: -4.5 dBV, 600 mV RMS
  Minimum input level: -20.6 dBV, 93 mV RMS
  Maximum input level: +12 dBV, 4V RMS
• Frequency response: +0, -2 dB, 50 Hz to 10 kHz
• HEADPHONE OUTPUT
  (Stereo headphone jack, mono signal)
  Load impedance: 4 Ohms or greater
  Nominal power output: 20 mW into 4 Ohms (Switching jack disconnects the internal speaker when plug is inserted)
• System hum and noise: 80 dBV (both channels operating)
• Equalization (both channels): ±15 dB @80 Hz and 8 kHz, shelving
• Weight and dimensions:
  Weight: 17.4 lbs. (7.89 kg)
  Width: 13.75" (349 mm)
  Depth: 9.0" (229 mm)
  Height: 14.25" (362 mm)

CHANNEL ONE

1. INPUT
   Signal input for Channel One. This 1/4" jack input will accept signals from a variety of keyboard and acoustic instruments.
2. LEVEL
   Controls the Channel One 1/4" phone jack input level.
3. LOW EQUALIZATION
   An active tone control (shelving type +/-15 dB) for boosting or cutting the bass frequency range.
   CAUTION: Excessive low frequency boost can damage the speaker.
4. HIGH EQUALIZATION
   An active tone control (shelving type +/-15 dB) for boosting or cutting the treble frequency range.

CHANNEL TWO

5. INPUT
   Signal input for Channel Two. This 1/4" jack input will accept signals from a variety of keyboard and acoustic instruments.
6. LEVEL
   Controls the Channel Two 1/4" phone jack input level.
7. LOW EQUALIZATION
   An active tone control (shelving type +/-15 dB) for boosting or cutting the bass frequency range.
   CAUTION: Excessive low frequency boost can damage the speaker.
8. HIGH EQUALIZATION
   An active tone control (shelving type +/-15 dB) for boosting or cutting the treble frequency range.
9. HEADPHONE JACK
   A headphone jack is provided for stereo headphones. This switching jack disengages the internal speaker when plugged in.
